How To Install Garage Door Seals

Garage Door Seals are very easier to install yourself if you choose to do so.

Above is a video showing detailed instructions on installing the garage door seals yourself.

Below is a general list of steps you can follow to install them yourself.

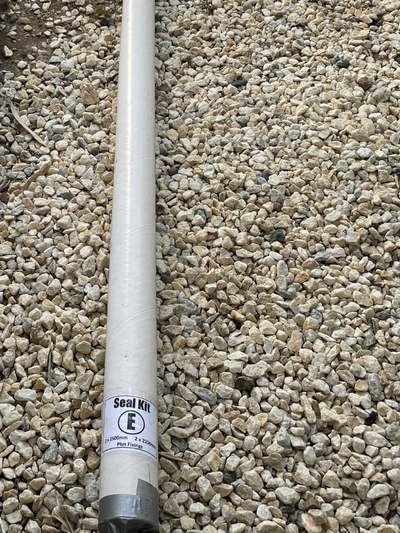

1. Remove the seals from the cardboard tube

Garage Door Weather Seal Packaging
Garage Door Weather Seal Packaging

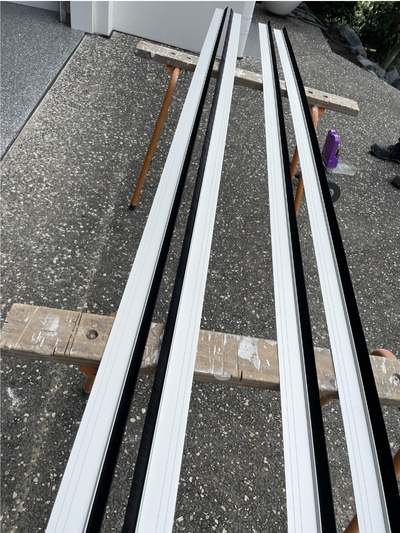

2. In the tube, you will find the wood fixing screws and four lengths of seals

Garage Door Weather Seal inclusion
Garage Door Weather Seal inclusion

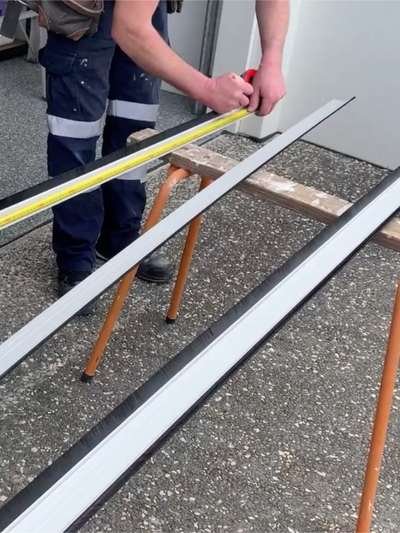

3. Measure the length of the door

Garage Door Seal Installation Measure
Garage Door Seal Installation Measure

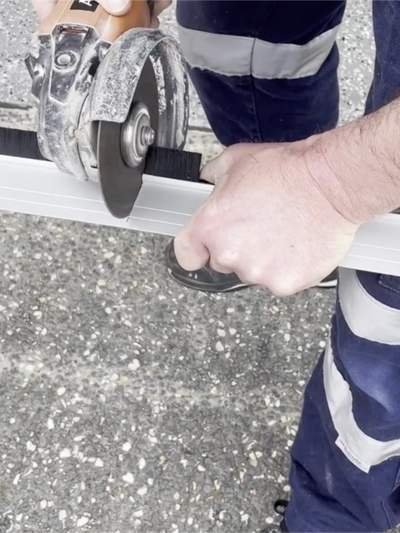

4. Cut the end with a grinder or a hacksaw

Garage Door Seal Installation Cut with Grinder
Garage Door Seal Installation Cut with Grinder

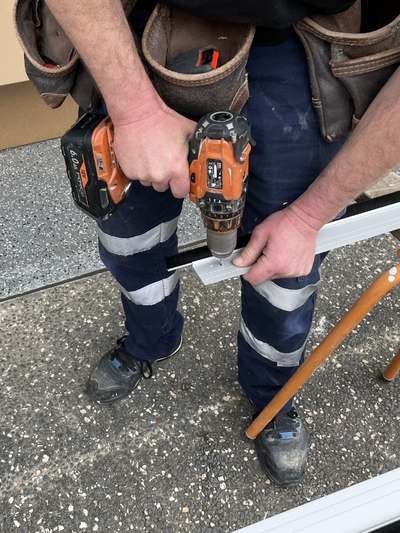

5. Drill holes in the weather seal 20-50mm from each end and then space another three hoes evenly along the length of the seal. Five holes are enough to hold each length in place

Drill Holes into Garage Door Garage Door Seal

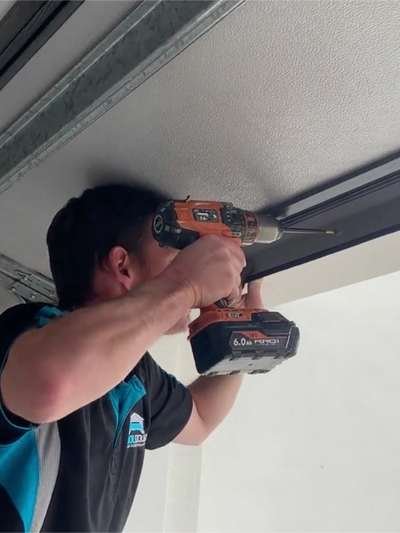

6. Drill Holes into Garage Door Garage Door Seal6. Install the seal onto the wall with the brush facing in towards the door

Garage Door Seal Installation Drill Holes
Garage Door Seal Installation Drill Holes

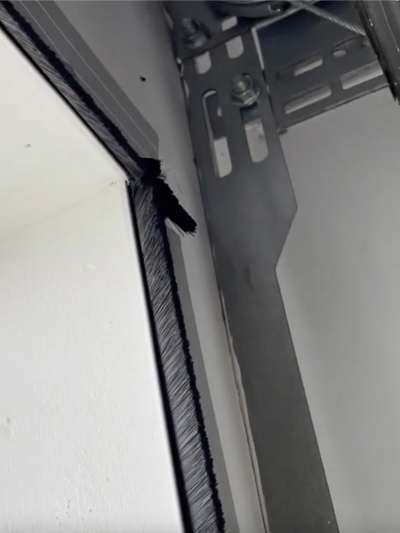

7. On the left and right sections overlap the brushes

Garage Door Seal Installation Overlap
Garage Door Seal Installation Overlap
